Gravel / Cyclocross

$2,800 frame and fork

Our gravel frame is made from super lightweight, size-specific Columbus tubing here in the US. It’s built with a race-fit geometry that’s perfect for gravel or cyclocross racing, but also comfortable enough to ride all day. The ENVE tapered fork and oversized headtube makes for a solid front end, and the custom-shaped chainstays are snappy yet provide stability in the rear. Internal hose routing keeps cables clean. Our US-made UDH dropouts are SRAM Transmission compatible.

We’ve brought all this together to create a fantastic-riding, modern steel frame. We’re offering it as a frameset or as a complete bike; full builds are done on a per-customer basis, so we’ll work with you to get wheels, tire, gearing, and contact points just right for the riding you do.

A dark green Pinarello Pinne True mountain bike with brown tires leaning against a weathered beige wall with peeling paint. Shadows of the bike are cast on the wall.
Unassembled green PINEHURST bicycle frame mounted on a wooden stand on a wooden deck with gray planters and plants in the background.
Close-up of a dark green bicycle front fork and part of the frame with a small sticker of the Pennsylvania map logo. Background shows a blurry patio or deck area.
Close-up of a green bicycle frame with a white logo that says 'AOSC' and a mountain graphic, attached to a wooden bike stand.
A cream-colored Pinarello racing bicycle with black accents, placed outdoors on grass with hilly terrain in the background.
A white PinéHURST bicycle frame mounted on a wooden stand against a green textured wall.
Close-up of a white bicycle frame against a textured green wall.
Silver PINEHURST brand bicycle with black handlebars and beige tires leaning against a textured blue wall.
Unpainted bicycle frame with branding 'PINHEURST' set outdoors on wooden stand, background includes large gray planters with green plants.
Close-up of a metallic frame with hinges, possibly part of a bicycle or equipment, on a wooden deck with a wall and window in the background.
Unassembled PINEHURST bicycle frame painted in light pink, mounted on a wooden stand outdoors with plants and a building in the background.

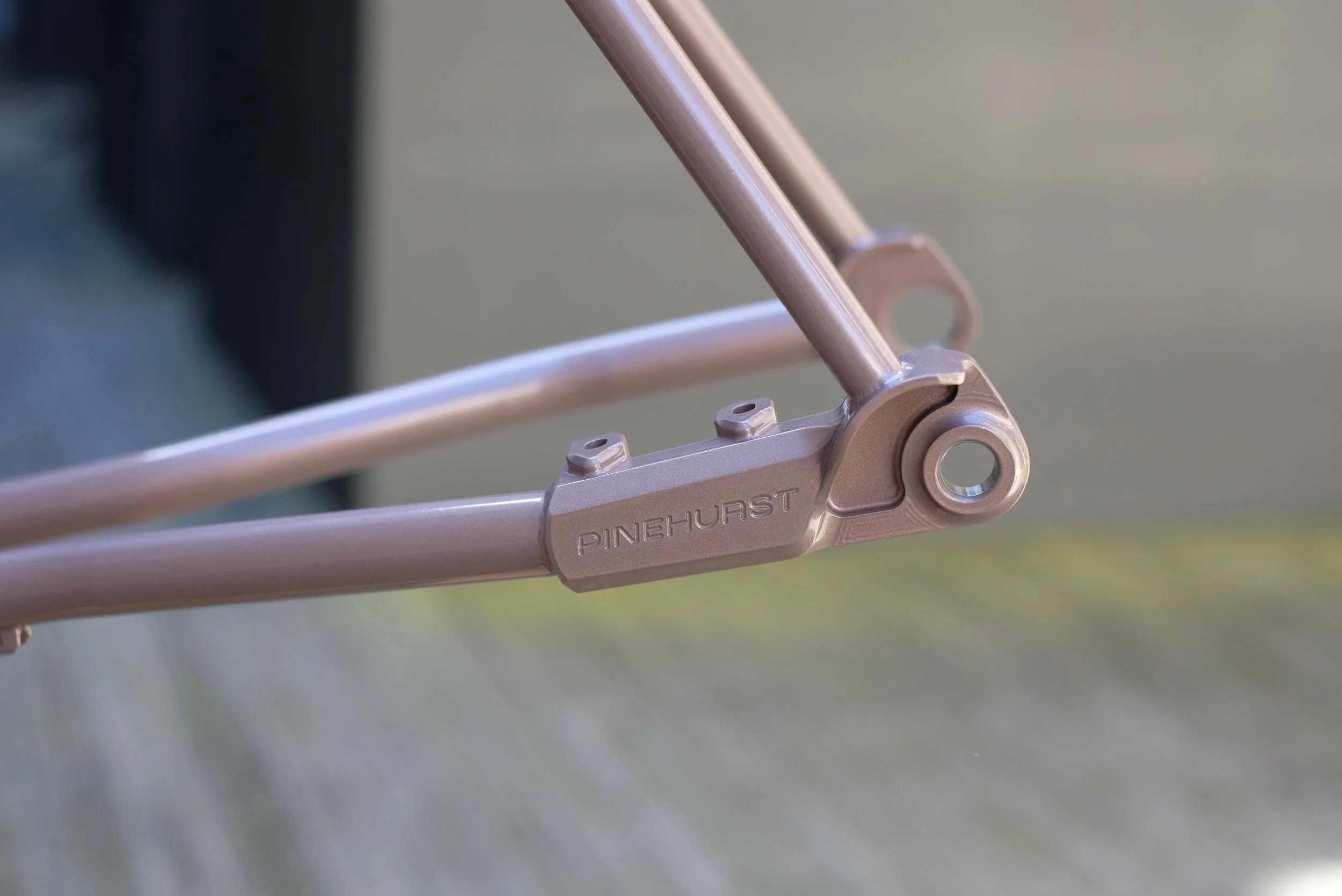

Close-up of a metallic bicycle frame with the brand name ''PINEHURST'' engraved on it, on a flat surface.
A Pinarello mountain bike with a metallic frame, brown handlebar tape, and beige tires, leaning against a beige brick wall.
A modern mountain bike with a black frame leaning against a brick wall.
A brown mountain bike with black and brown handlebar tape, black saddle, and disc brakes, leaning against a brick wall on a paved surface.

    • UDH dropouts, SRAM Transmission or standard derailleur compatible.

    • 44mm ID headtube, with ENVE 1.5” tapered fork requires a ZS44 top and EC44/40 lower. We recommend this one from White Industries.

    • English bottom bracket, 68mm width

    • 12 x 100mm thru axle front, 12 x 142mm rear

    • 160mm native flat-mount compatibility

    • 1x or 2x compatible. Wide cranksets are compatible (and required for SRAM Transmission).

    • Road cranksets fit 44t chainrings and 50/34t for 2x. Wide cranksets will get additional clearance.

    • 3rd bottle mount below downtube.

    • 700 x 45mm tire (measured) frame clearance, 700 x 50mm fork clearance (ENVE gravel) or 700 x 53mm (ENVE adventure)

    • Default shifting configuration is for electronic SRAM. For pre-orders, we can also configure for mechanical shifting or Di2 with a T47 bottom bracket for an additional $100.

  • Our frames are a race-fit, with a longer reach and lower stack than most off-the-shelf frames. Designed to still be comfortable for all-day rides but aggressive enough for race-day. The front end is fast but predictable, and the short rear end is snappy yet stable.

    Need help with sizing? Let us know! We’d be happy to help.

Table comparing two sizes (S and L) with metrics including stack, reach, HTA, STA, TT effective c-c, ST, HT length, TT slope, BB drop, and fork offset.
