Gravel, reimagined.

A modern steel gravel bike built to ride, race, and explore. Race geometry, with handling that’s just as good off-road as on.

Pre-order yours

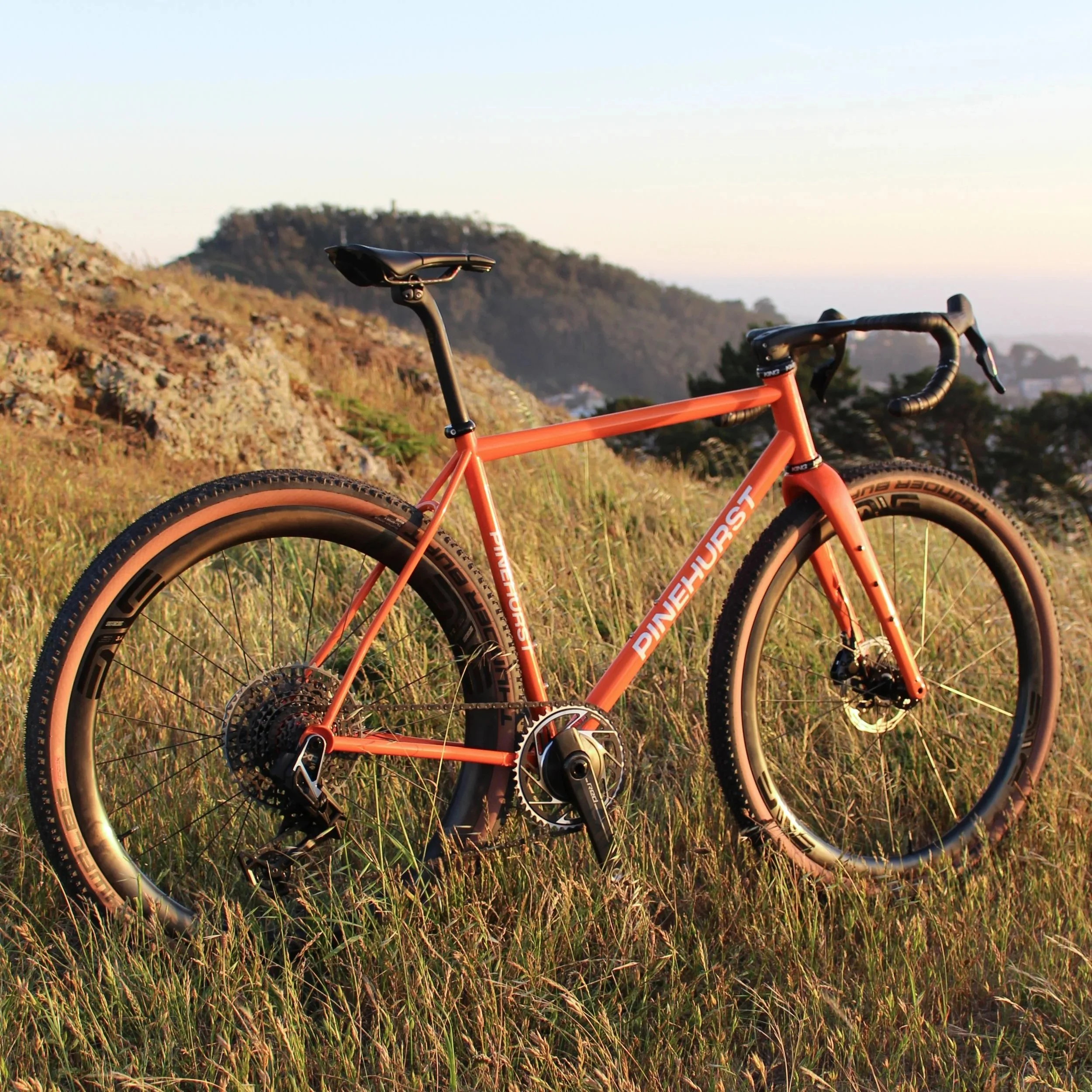

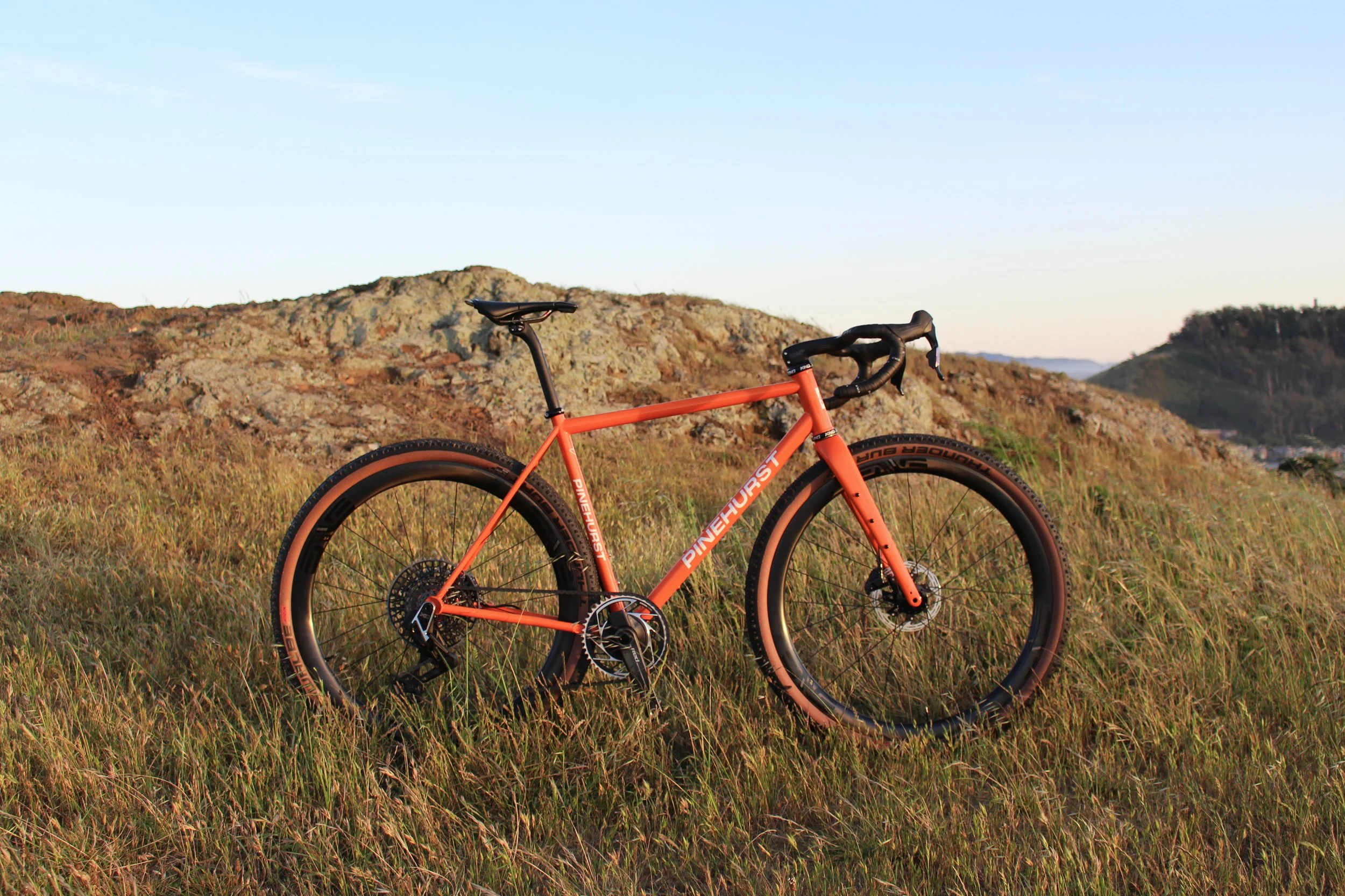

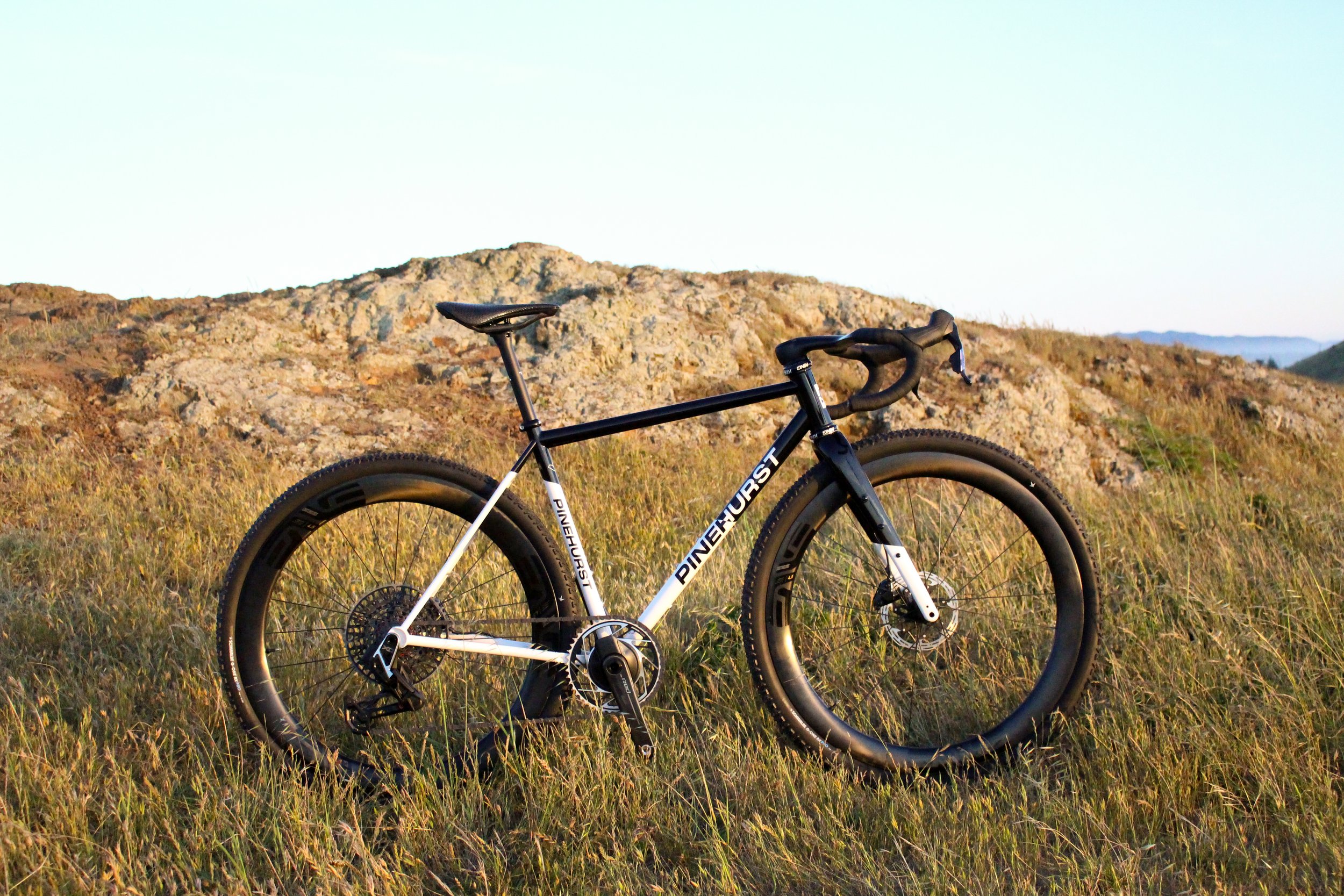

Pinehurst Gravel v2

$3200 frame and fork, $3050 for pre-orders.

A modern steel gravel frame designed for all-day rides, races, and everything in between. Carefully selected, size-specific Columbus Spirit, Life, and custom shaped 4130 balance immediate power transfer with the natural vibration dampening properties of steel.

Clearance for 2.1” tires mean you have the option to run fast XC tires. Progressive geometry so the way to the trail is as enjoyable as being on it. Fully integrated cable routing. No gimmicks or weird standards.

Pre-order yours

Technical Specs

Tubeset: Columbus Spirit, Life, and custom-shaped 4130 with selectively ovalized + tapered profiles
Fork: ENVE In-Route (1.5" tapered); internal routing compatible with ENVE, Deda DCR, FSA systems, and more
Headtube: 44mm internal diameter
Bottom Bracket: T47 threaded, 68mm width
Axles: 12×100mm front / 12×142mm rear
Brakes: Flat mount disc, 160mm rotor compatibility
Clearance: 29×2.1”
Fender Mounts: Yes, with hidden eyelets
Seatpost: 27.2mm
Seat Collar: 29.5mm (29.8-30.0mm also compatible)
Shifting: Default routing for SRAM eTap; Di2 setup available for pre-orders (+$100). UDH compatible.

Geometry


            Size
            Stack
            Reach
            HTA
            STA
            TT (c-c)
            ST (c-t)
            HT length
            TT slope
            BB drop
            CS length
            Fork offset



            50
            520
            370
            70
            74.5
            517
            450
            80
            10.9°
            75
            425
            55


            52
            540
            378
            70.5
            74
            535
            480
            100
            9.5°
            72
            425
            53


            54
            560
            385
            71
            73.5
            552
            500
            120
            9.4°
            72
            425
            53


            56
            577
            395
            71
            73.5
            567
            520
            140
            8.9°
            72
            425
            53


            58
            600
            405
            71.5
            73.5
            584
            550
            160
            8.0°
            70
            425
            50


Gravel, reimagined.

Pinehurst Gravel v2

Technical Specs

Geometry

Interested? Our pre-order is open now.

Fill out the interest form to get started.
